Innopal PS Pallet Stacker/Destacker

Overview

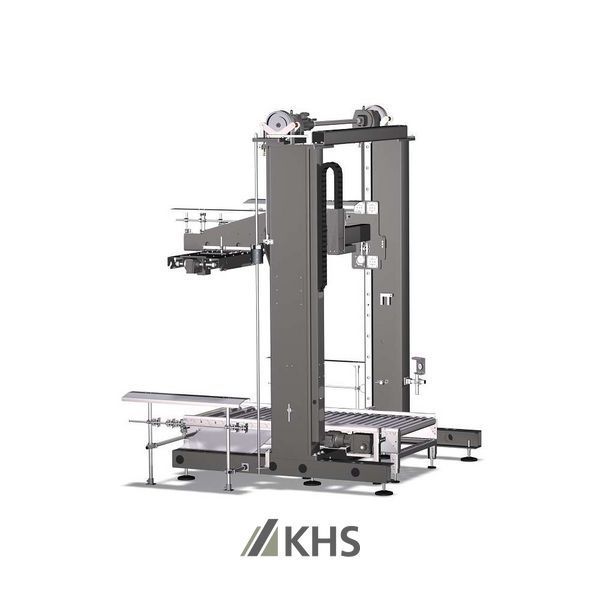

The Innopal PS two-column pallet stacker/destacker is a versatile and reliable solution for automatically stacking and destacking pallet blocks with separator pallets. Designed for low to medium performance ranges, it handles filled products, empties, and consumables, with a maximum throughput of 200 single pallets per hour.

Key Features

• Versatile Operation: Stacks and destacks various pallet types.
• High Throughput: Processes up to 200 single pallets/hour.
• Precision Alignment: Uses a light barrier for accurate pallet positioning.
• User-Friendly: Easy program selection for layer settings.

Advantages

• Modular Design: Enhances versatility and reduces parts count.
• High Availability: Up to 98% machine availability, reducing operating costs.
• Low Maintenance: Toothed belts and robust design minimize maintenance needs.
• Energy Efficient: Counterweights and motor-driven catches conserve energy.

Sustainability

• Efficient Operation: Balancing with counterweights cuts energy consumption.
• Resource Conservation: Electric motor-driven catches help conserve resources.

Consumables

KHS MULTI GREASE 01

• KHS MULTI GREASE 01 is an high performance extreme pressure lubricant. It is suitable for centralised lubrication systems.
• Material numbers: 301142150102, 301142150106, 301142150108

KHS GEAR FLUID 460

• KHS Gear Fluid 460 is a fully synthetic high performance gear oil with EP properties which have been specially developed for use in machinery used in the food and beverage processing and packaging industry.
• Material numbers: 301142110207, 301142110209
